OAuth Providers

OAuth providers enable you to use OAuth for delivery or automation campaigns with services such as Microsoft Graph API in combination with API Senders.

Overview

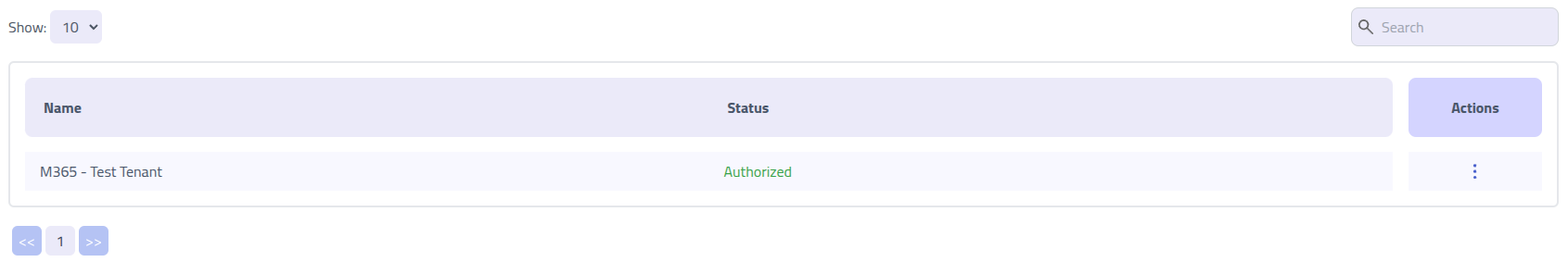

The OAuth providers overview displays all configured providers and their authorization status.

Phishing Club - OAuth Providers — OAuth providers overview

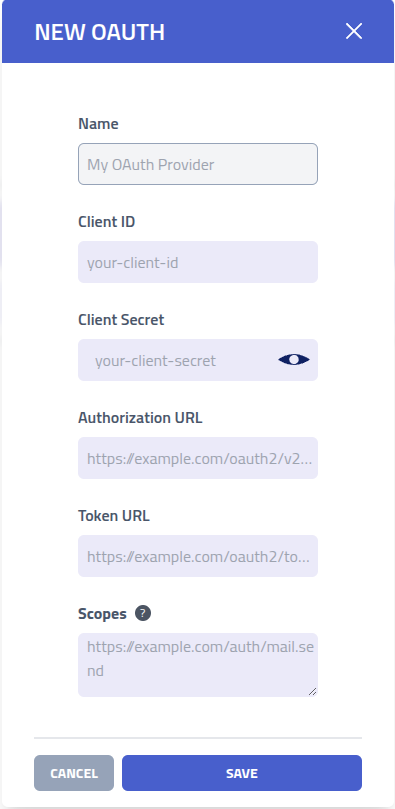

Create OAuth Provider

OAuth Provider Configuration
Setting	Description
Name	Identifier for the OAuth provider configuration
Client ID	OAuth application client identifier obtained from the service providers developer console
Client Secret	OAuth application secret key for secure authentication. When updating, leave empty to keep existing secret
Authorization URL	OAuth 2.0 authorization endpoint where users grant access permissions (ex. https://example.com/oauth2/v2/auth)
Token URL	OAuth 2.0 token endpoint for exchanging authorization codes and refreshing access tokens (ex, https://example.com/oauth2/token)
Scopes	Space-separated list of OAuth scopes defining the level of access requested (ex., https://example.com/auth/mail.send)

Here is an example of setting up an OAuth application for a Microsoft tenant.

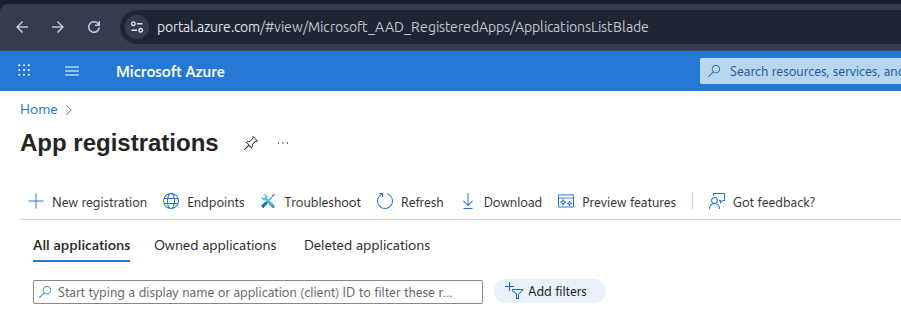

Go to Microsoft Azure - App registrations and click New registration.

Phishing Club - Microsoft App registration page — Adding new OAuth App in Microsoft

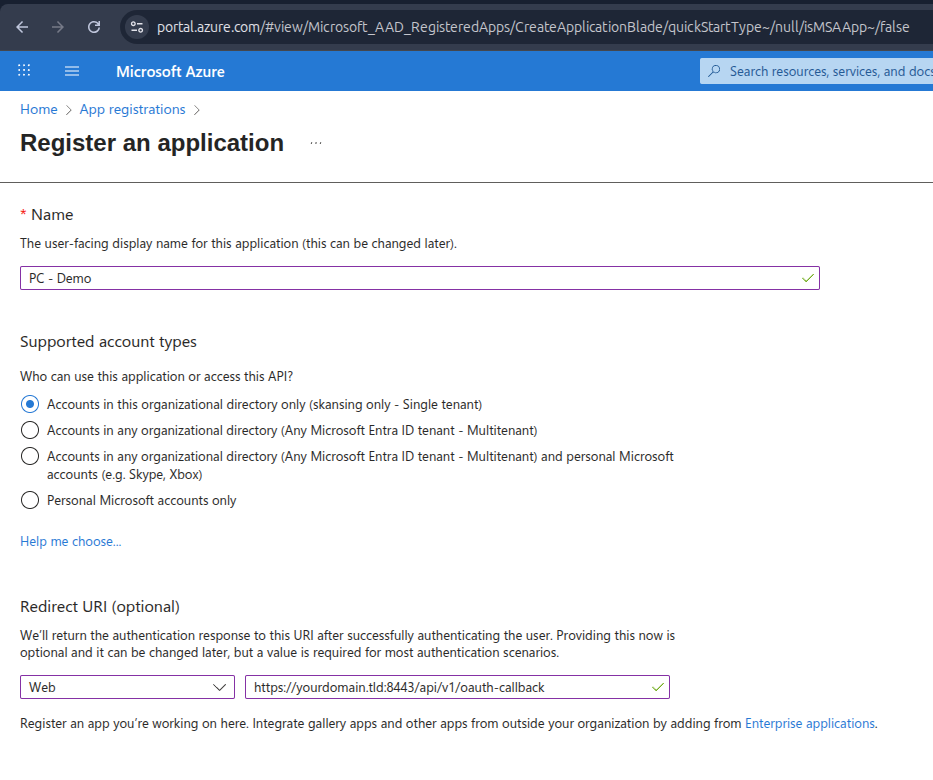

Give it a suitable name, select the account types to support and finally add a Redirect URI, this is the URL where your administration instance is hosted and the endpoint is always /api/v1/oauth-callback, and click Register.

Phishing Club - Filling out Microsoft new app registration page — Fill out the details of the app registration accordingly

The newly created app should look something like this.

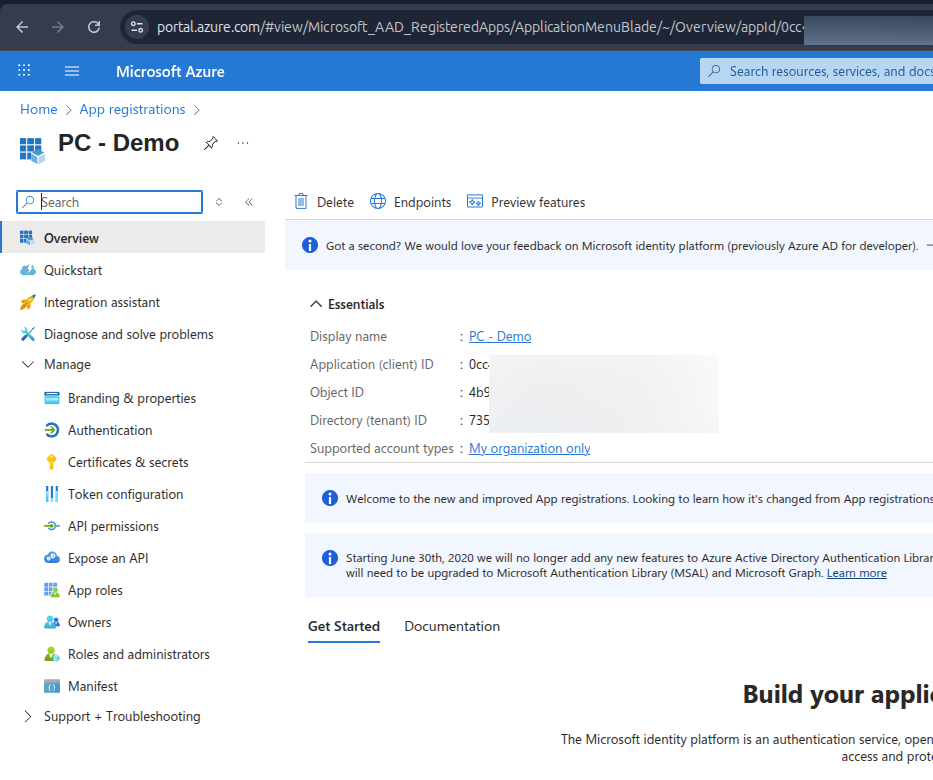

Phishing Club - Newly created Microsoft Oauth app — Newly created app with its details

Before we can set it up, we must also add a Secret, click on Certificates and secrets, and on New client secret, give it a suitable description and lifetime (expiry) and click add.

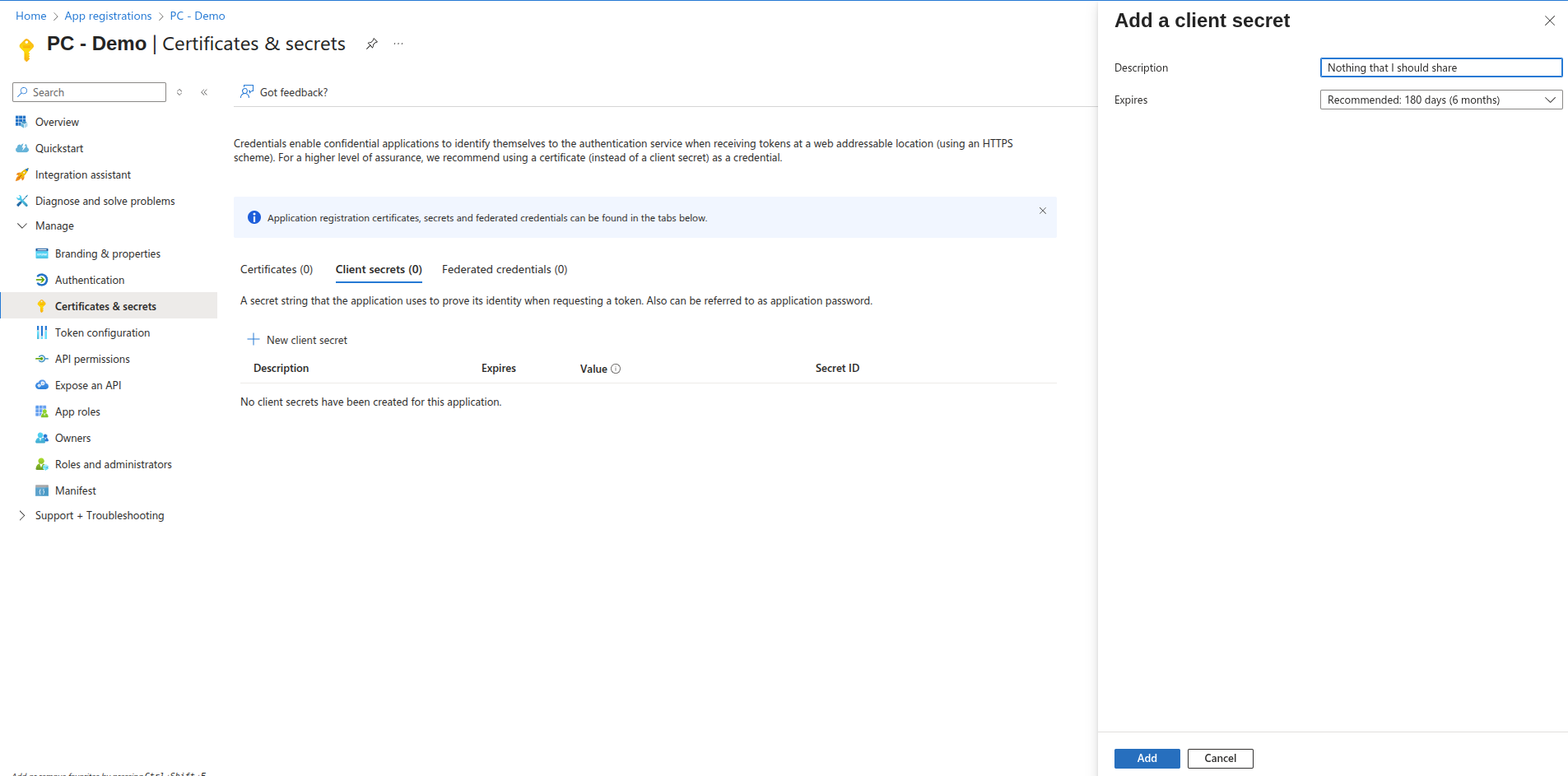

Phishing Club - Adding a secret to the oauth application — Adding a secret to the app

Copy or save the Value of the secret, you will need it in just a bit.

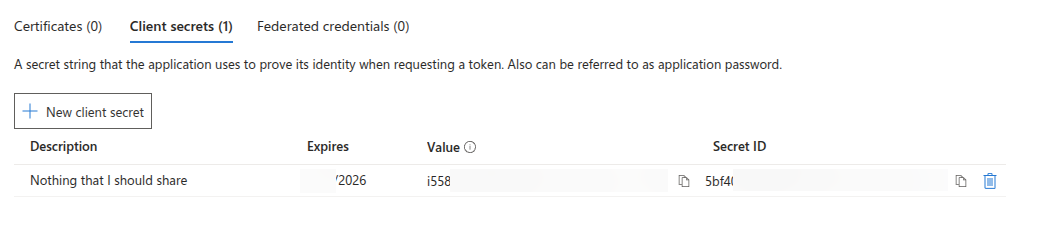

Phishing Club - Page with the secret from the oauth application — Copy the Value for later

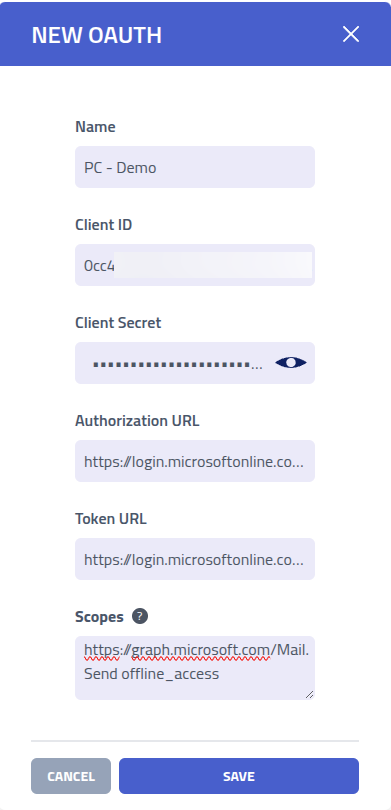

Now lets create our OAuth provider with all the details.

Phishing Club - Adding a new oauth application with our Microsoft app details — Use the details for cliet and secret

I used the following details for each field

Microsoft OAuth Provider
Key	Value
Name	Filled with `Application (client) ID` from the Microsoft App.
Client Secret	Filled with the `Value` from the `Client Secret`
Authorization URL	`https://login.microsoftonline.com/MY_TENANT_ID_HERE/oauth2/v2.0/authorize` With the `MY_TENANT_ID` replaced with `Directory (tenant) ID` from the Microsoft App page.
Token URL	`https://login.microsoftonline.com/MY_TENANT_ID_HERE/oauth2/v2.0/token` With the `MY_TENANT_ID` replaced with `Directory (tenant) ID` from the Microsoft App page.
Scopes	`https://graph.microsoft.com/Mail.Send offline_access` With `Mail.Send` so I have permission to send emails and `offline_access` to get a refresh_token, which is crucial for maintaining the access.

With this, the Oauth application is ready to be authorized and connected.

Authorization

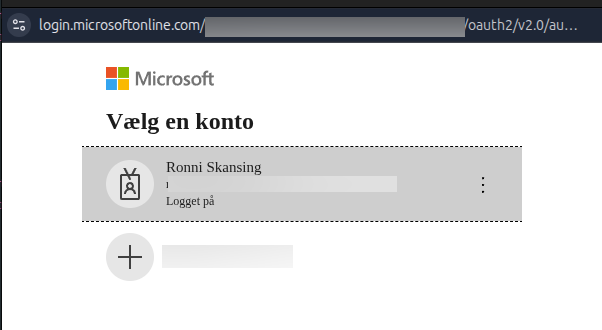

Under Actions for a OAuth provider click Authorize, this will open a login and consent page for the provider.

Phishing Club - OAuth Login — OAuth provider authorization process

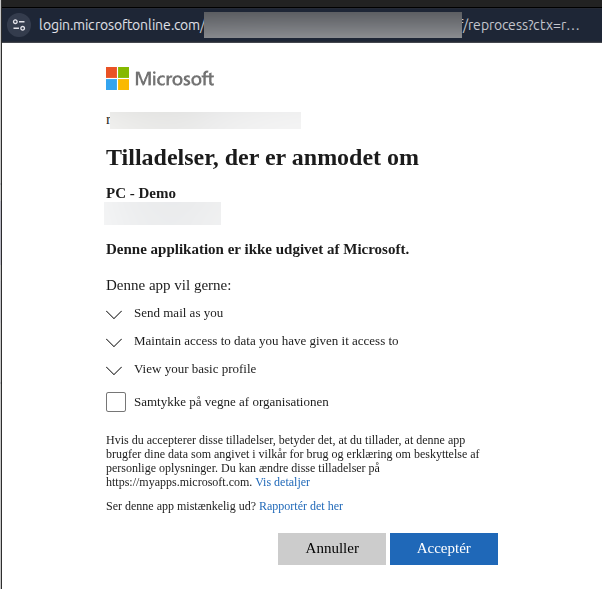

Grant the requested permissions to complete authorization, sorry about the danish language, I hope you understand it anyways

Phishing Club - OAuth Authorization permissions — Accept the scope that should match the permissions you requested

Once authorized, the status will change to Authorized. You can re-authorize at any time to refresh permissions or remove authorization to revoke access.

Authorization Status

OAuth providers display one of two authorization states:

Authorized - Provider is connected and ready for email delivery
Not Authorized - Provider requires authorization before use

Access and refresh tokens are securely stored and automatically refreshed by the system. If authorization is removed, all stored tokens are permanently deleted.
